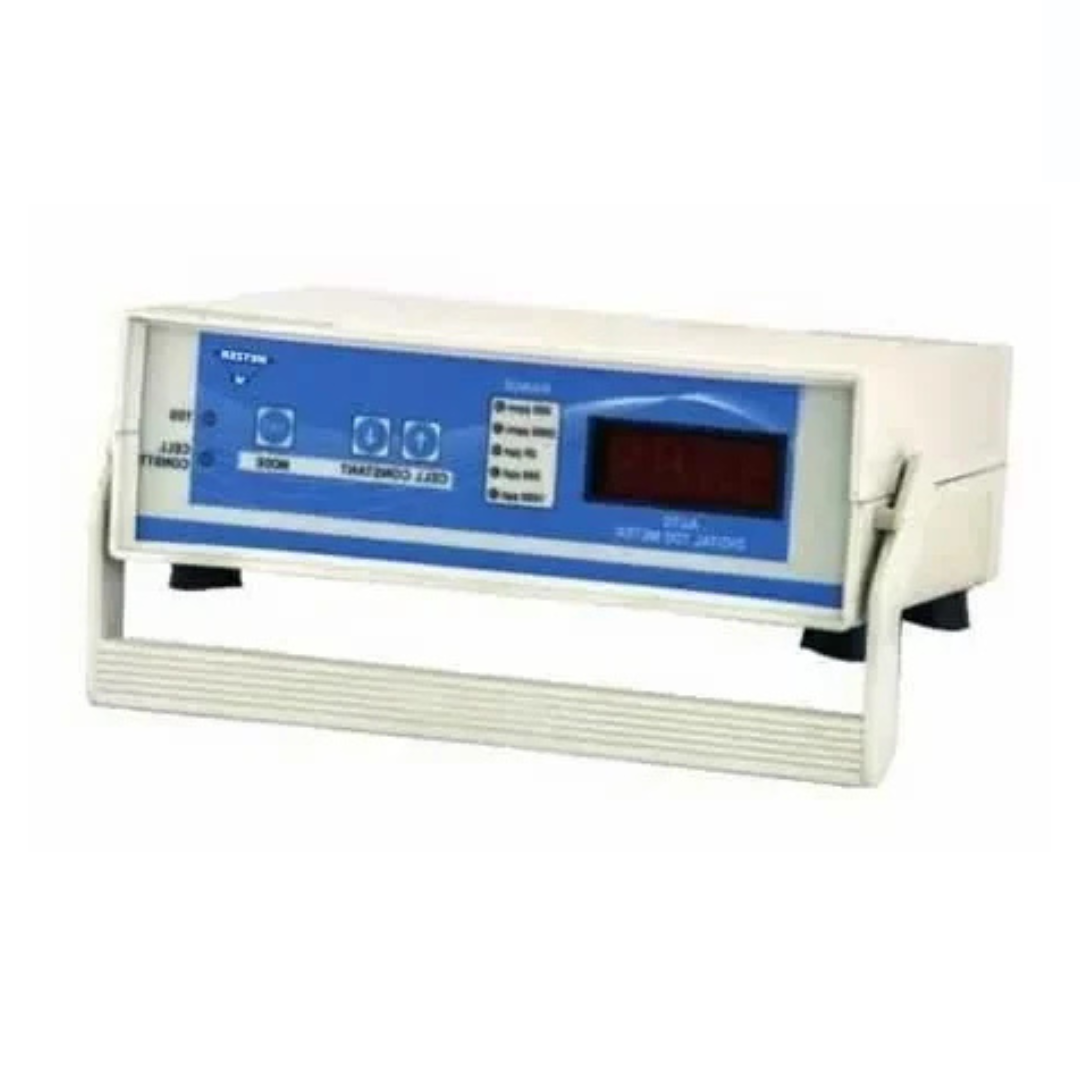

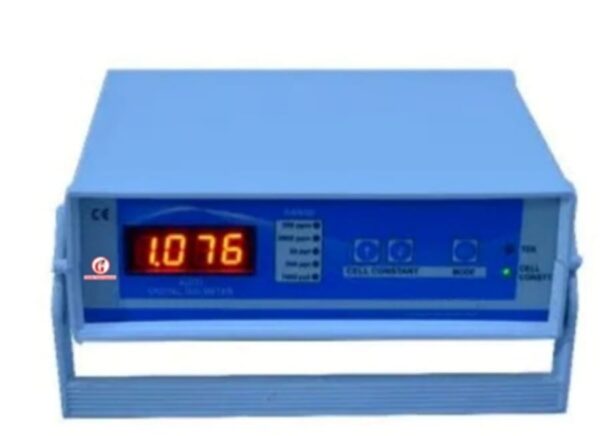

Digital Auto Conductivity Meter-GSI19SME

TECHNICAL SPECIFICATIONS :-

GENERAL:-

Parameters : Conductivity

Display : 3½ Digit Bright Red LED Display

Display Format : Menu Driven

Key Board : 3 soft touch membrane type keys

Power supply : 230V ± 10% AC,50 Hz

Setting : By Soft Touch Keys

PARAMETERS:-

Conductivity:

Rang : Automatic in 5 Ranges

0-200 µS

0-2 mS, 0-20 mS, 0-200 mS, 0-1000 mS

Range Selection : Automatic in 5 Ranges

Resolution : 0.1 µS

Accuracy : ± 0.5% F.S. ± 1 digit

Cell Constant : Adjustable ON Digital Display

Auto Calibration : Auto Calibration (Push to Enter)

Measuring Cell : Platinum DIP Type

Cell Constant : Auto

Temperature:-

Range : 0 to 100°C (Automatic with Probe) (IN
Model-: 056A-G Only) 0 to 100°C (Manual with Knob) (IN Model-:056-G)

Resolution : 0.1°C ± 1 digit

Accuracy : ± 0.1°C ± 1 digit

Sensor : PT100 Sensor

Calibration : Manual

STANDARD ACCESSORIES:-

1 Conductivity Cell DIP Type (K=1) 1 No.
2. Temperature Probe (In ATC Model only) 1 No

3. Cell stand 1 No.

4. Instruction Manual1 No.5.Dust Cover 1 No
