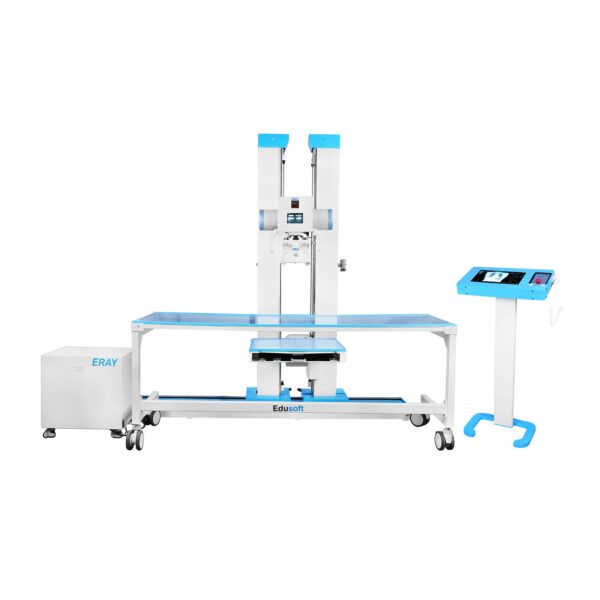

Fixed HF ECO DR X-Ray Machine – ERAY SMART ECO DR:

Feature	ERAY SMART ECO DR 20	ERAY SMART ECO DR 40	ERAY SMART ECO DR 50
Power Output	20 kW	40 kW	50 kW
X-Ray Generator & Tube
Type	HF Generator	HF Generator	HF Generator
Time Range	1 ms – 10,000 ms	1 ms – 10,000 ms	1 ms – 10,000 ms
kV Range	40 kV – 125 kV	40 kV – 125 kV	40 kV – 150 kV
mA Range	10 mA – 250 mA	10 mA – 500 mA	10 mA – 630 mA
Anode Type	Stationary	Stationary	Stationary
Heat Capacity	140 kHU	140 kHU	300 kHU
Detector
Detector Size	17″ x 17″	17″ x 17″	17″ x 17″
Matrix Size	4K x 4K	4K x 4K	4K x 4K
Detector Type	Wireless	Wireless	Wireless
Pixel Size	140 µm	140 µm	140 µm
Detector Image Storage	> 200 images	> 200 images	> 200 images
Scintillator	CsI	CsI	CsI
IP Rating	IP67	IP67	IP67
User Interface
Monitor	13.3″ Inbuilt LCD Touch Display	13.3″ Inbuilt LCD Touch Display	13.3″ Inbuilt LCD Touch Display
Interface	USB 2.0, LAN, HDMI	USB 2.0, LAN, HDMI	USB 2.0, LAN, HDMI
CPU	i5/i7	i5/i7	i5/i7
RAM	8 GB	8 GB	8 GB
Software	Edusoft Image Acquisition Software	Edusoft Image Acquisition Software	Edusoft Image Acquisition Software

Product Description:

The ERAY SMART ECO DR Series offers an efficient and high-performance solution for Fixed HF (High-Frequency) Digital Radiography. This series is designed to meet the demanding needs of healthcare facilities, offering exceptional image quality, reliability, and ease of use. With three available models (ERAY SMART ECO DR 20, ERAY SMART ECO DR 40, ERAY SMART ECO DR 50), it provides flexibility in terms of power output, ranging from 20 kW to 50 kW, ensuring it can handle a variety of imaging requirements.

Key Features:

Advanced HF Generator: All models are equipped with high-frequency generators, providing stable and precise output for excellent image quality.
Wide kV and mA Range: Models feature adjustable kV ranges from 40 kV to 150 kV and mA ranges from 10 mA to 630 mA, ensuring accurate imaging across various patient types.
Wireless Digital Detector: Features a 17″ x 17″ wireless flat-panel detector with 4K x 4K matrix size and a 140 µm pixel size for exceptional image clarity and detail.
Enhanced Durability: With an IP67 rating, the system is dust and water-resistant, making it highly durable in clinical environments.
Large Storage Capacity: The detector can store over 200 images, making it easy to manage patient data and images efficiently.
User-Friendly Interface: A 13.3″ LCD touch display and intuitive Edusoft Image Acquisition Software make it simple to operate and capture high-quality images with ease.
Powerful Performance: The system’s heat capacity ranges from 140 kHU to 300 kHU, depending on the model, ensuring reliable performance during continuous operation.

The ERAY SMART ECO DR Series provides an ideal balance between affordability, advanced technology, and high-quality imaging, making it a top choice for healthcare providers seeking a reliable, easy-to-use digital X-ray system. Whether you’re looking for a solution for human or veterinary applications, this series delivers the performance and durability you need.

Description

Features:-

Quick Image Preview: Get preview images in under 5 seconds, ensuring a seamless and efficient experience for both healthcare providers and patients.

Edusoft IAS Technology: Enjoy high-contrast, sharp digital images with Edusoft IAS technology, delivering accurate diagnoses and clearer visualizations.

Flexible Bucky System: The vertical and horizontal bucky system helps prevent damage to the detector, offering long-term reliability and flexibility in imaging.

Superior Image Quality: Powered by the highest quality wireless detector, the system ensures exceptional image clarity and precision.

Wide Dynamic Range: View both soft tissue and hard bone structures simultaneously with a broad dynamic range, enhancing the versatility of the system.

User-Friendly Software: Edusoft IAS enhances image details by automatically removing grids and exposure errors, improving diagnostic accuracy and reducing manual intervention.

Chemical-Free Film Printing: The dry film printing process eliminates the need for chemicals, making it environmentally friendly and cost-effective.

Drop-Proof Detector Test: The system offers an optional drop-proof detector test up to 100 cm, ensuring durability and peace of mind in high-traffic healthcare environments.

Optional Dual Energy Subtraction: Dual energy subtraction and auto image stitching are available for more accurate imaging, particularly in complex diagnostic cases.

Advanced Post-Processing Features: Improve image quality with additional post-processing features, fine-tuning details for better diagnoses.

Dust and Water-Resistant Detector (IP67 Rating): The IP67-rated detector offers enhanced durability, providing resistance to dust and water, making it suitable for various clinical environments.

The ERAY SMART ECO DR Fixed HF X-Ray Machine combines cutting-edge technology with user-friendly features, delivering high-quality images, fast operation, and durability, making it the perfect choice for healthcare professionals seeking precision and reliability.
