Description

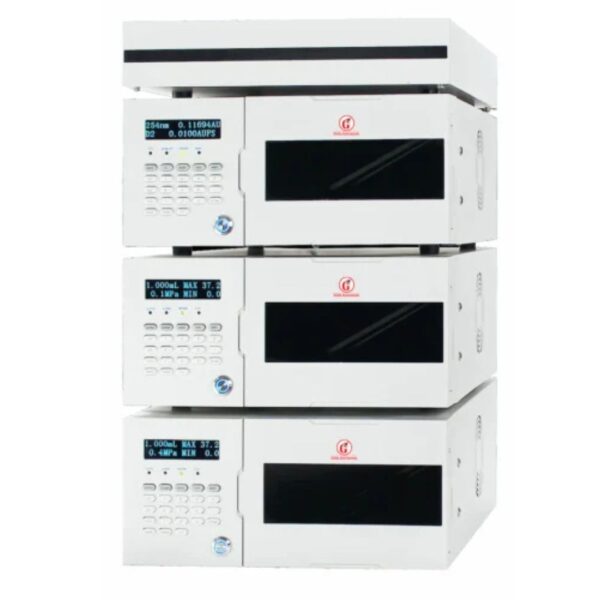

Globe Scientific Instruments High Pressure Liquid Chromatograph (HPLC) – (GSI-7108) HPLC system with high pressure solvent delivery pump, Multi-wavelength UV Detector, Sample inject valve. LC Column (USA) with work-station software. Wavelength range 190-700nm, Wavelength accuracy +/-1nm, spectral bandwidth 8nm, flow cell volume 8 micro litre, optical length – 10nm.
Features
- Improve the maximum limited pressure by precise transducer
- Accord with GMP/GLP, ISO9001, 21 CFR Part II with CDS (Software)
- Online Washing Device while analysis
- Self – priming pump head requires no manual priming
- Available with micro, analytical, semi-prep, and prep pump heads
- Programmable solvent compressibility compensation
- Easy maintenance and service for all wetted parts
- Unique pool structure ensures the accuracy and sensitivity of the instrument
- Easy maintenance and service for all wetted parts High-quality structure
- High Quality Structure
- Long Life Deuterium Lmap
- Long life deuterium lamp
- Easily replace Advanced design
Technical Specifications: UV Detector
| Wavelength | 190-700 nm |
| Spectra l bandwidth | 6 nm |
| Wavelength Accuracy | ≤±1 nm |
| Wavelength Reproducibility | ≤± 0.1 nm |
| Flow Pool volume | 8μ L |
| Optical Path | 10 mm |
| Dynamic Noise | ≤± 0.75×10 – 5AU (Methanol, 1ml/min, 254nm, 20°C) |
| Static Noise | ≤±0.5×10 – 5AU(Empty pool,Responsetime1s, 20°C) |
| Dynamic Drifting | ≤±1×10 – 4AU (Methanol, 1ml/min, 254nm, 20°C ) |
| Static Drifting | ≤±0.5×10 – 4AU(Emptypool,Responsetime1s, 20 °C) |
| Qualitative | RSD ≤ 0.1% |
| Quantitative | RSD ≤ 0.5% |
| Dimensions | 130H x 260W x 420 D, (mm ) |
| Weight. | 11 kg |
