Integrated Digital Mobile/Portable X-Ray Machine - EH02SME

925,000.00

Integrated Digital Mobile/Portable X-Ray Machine – EH02SME

925,000.00

Integrated Digital Mobile/Portable X-Ray Machine:-

Technical Specifications:-

Feature ERAY SMART 4T ERAY SMART 6T
Power Output 4 kW 6 kW
X-Ray Generator & Tube
Type HF Generator HF Generator
mAs Range 0.1 ~ 320 mAs 0.1 ~ 320 mAs
kV Range 40 ~ 125 kV 40 ~ 125 kV
mA Range 5 ~ 100 mA / 150 mA; 150 mA @ 40kV/100ms 5 ~ 100 mA / 150 mA; 150 mA @ 40kV/100ms
Focal Spot 2.0 mm 2.0 mm
Anode Type Stationary Stationary
Detector
Detector Type Wireless Wireless
Detector Size 14″ x 17″ 17″ x 17″
Matrix Size 3.5K x 4K 4K x 4K
Pixel Size 100 µm 140 µm
IP Rating IP67 IP67
Scintillator CsI CsI
Detector Image Storage < 200 images > 200 images
User Interface
Monitor 13.3” / 15″ Inbuilt LCD Touch Display 13.3” / 15″ Inbuilt LCD Touch Display
Interface USB 2.0, LAN, HDMI USB 2.0, LAN, HDMI
CPU i5 / i7 i5 / i7
RAM 8 GB 8 GB
Software Edusoft Image Acquisition Software Edusoft Image Acquisition Software

Product Description:

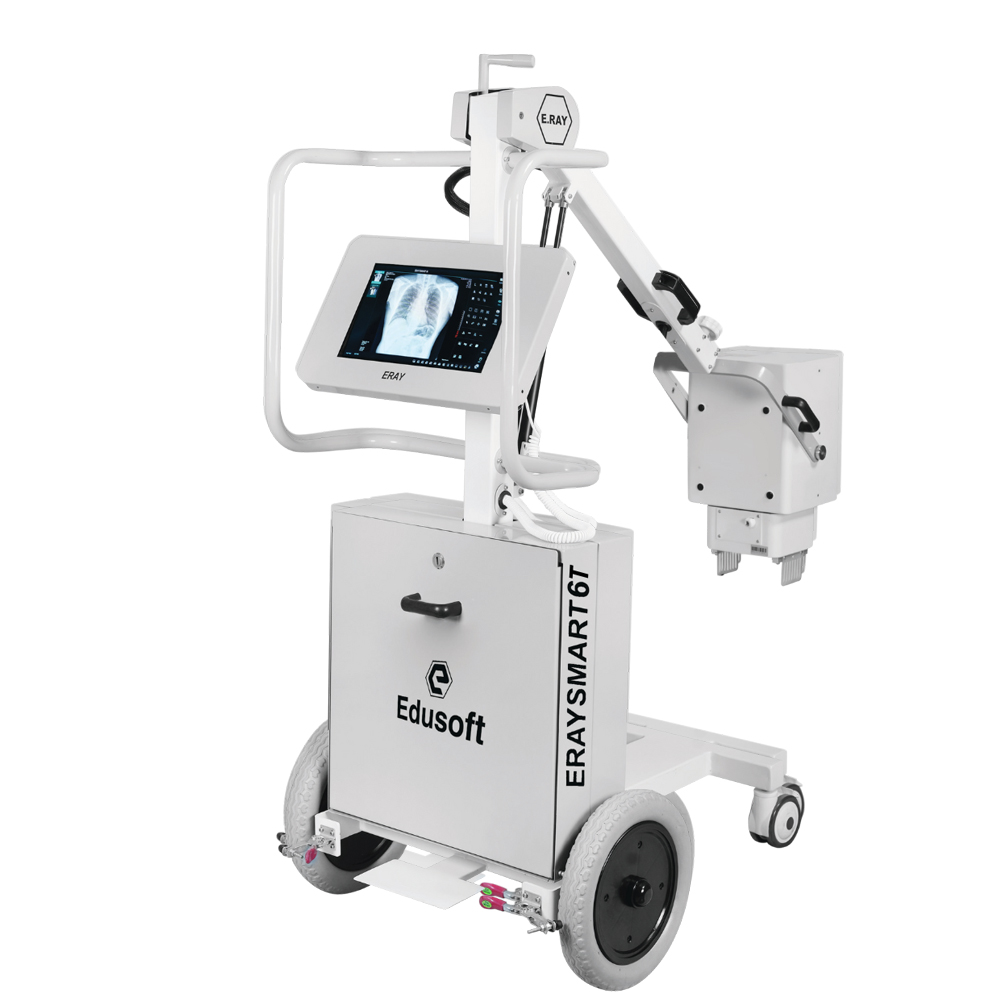

The ERAY SMART Series Integrated Digital Mobile/Portable X-Ray Machine is an advanced, lightweight, and portable imaging solution, ideal for a wide range of clinical and emergency settings. With its cutting-edge technology, the system provides high-quality diagnostic imaging while maintaining ease of mobility. Available in two models—ERAY SMART 4T and ERAY SMART 6T—the device offers flexibility, cost-efficiency, and reliability, making it a perfect choice for both human and veterinary use.

Key Features:

  • Powerful Output: The ERAY SMART 4T offers a 4 kW output, while the ERAY SMART 6T delivers a higher 6 kW output, catering to various imaging needs.
  • Wireless Digital Detector: Features wireless connectivity for efficient image transfer, with a 14″ x 17″ detector for ERAY SMART 4T and a larger 17″ x 17″ detector for ERAY SMART 6T.
  • High-Quality Imaging: Equipped with high-resolution matrix sizes (3.5K x 4K for 4T and 4K x 4K for 6T) and excellent pixel sizes (100 µm for 4T and 140 µm for 6T).
  • Rugged and Durable: Both models boast an IP67 rating, ensuring dust and water resistance for safe operation in any environment.
  • Advanced Software Integration: Both models feature the Edusoft Image Acquisition Software, ensuring smooth and accurate image capture and processing.
  • Flexible User Interface: The integrated 13.3” / 15” LCD Touch Display offers an intuitive touch interface for easy control and operation.
  • Connectivity Options: Equipped with USB 2.0, LAN, and HDMI for seamless integration into clinical and hospital systems.
  • Efficient Image Storage: The ERAY SMART 4T stores up to 200 images, while the ERAY SMART 6T provides storage for over 200 images, ensuring ample capacity for daily operations.

This integrated X-ray machine series provides healthcare professionals with high-quality imaging results, enhanced portability, and user-friendly features, making it an essential tool for modern medical imaging needs.

Add to Wishlist
Add to Wishlist

Description

High-Performance Imaging

  • Advanced Generators: Both the ERAY SMART 4T and ERAY SMART 6T are equipped with advanced generators that ensure precise, stable output, delivering exceptional image quality for accurate diagnoses.
  • High-Frequency Inverter Technology: Prioritizing patient safety, this technology enables efficient imaging with low radiation exposure, reducing the risks typically associated with X-ray procedures.

Superior Image Detail

  • Flat Panel Detectors: Achieve high-resolution digital images with outstanding clarity and detail, ensuring accurate and reliable diagnostic results.
  • Automatic Exposure Control: Automatically adjusts exposure settings to ensure optimal image quality while minimizing radiation exposure to the patient.

Unmatched Mobility

  • Compact Design: Both models are lightweight and compact, making them highly portable and easy to transport between different locations and healthcare facilities.
  • User-Friendly Interface: With intuitive touch screen controls, operation is simplified, reducing the need for extensive training and minimizing operational costs for healthcare providers.

Versatile Applications

  • Adaptability: Designed for use in a wide variety of environments, including hospitals, clinics, and mobile healthcare units serving remote or underserved areas.
  • Durability: Engineered for longevity, these machines require minimal maintenance, ensuring reliable performance with minimal downtime.

Why Choose Integrated Digital Mobile X-Ray?

At the heart of the Integrated 4kW Digital Mobile X-Ray and Integrated 6kW Digital Mobile X-Ray is our unwavering commitment to innovation and healthcare excellence. When you choose our X-ray systems, you’re not just selecting a machine—you’re choosing a trusted partner in providing exceptional patient care. Experience the perfect balance of advanced technology, portability, and patient safety with ERAY SMART Series X-ray machines.
