Description
| Model Name/Number | MHLI-27 |
| Brand | MEDIRAY |
| Type | Portable |
| Wavelength Range | 190-1100 nm |
| Country of Origin | Made in India |

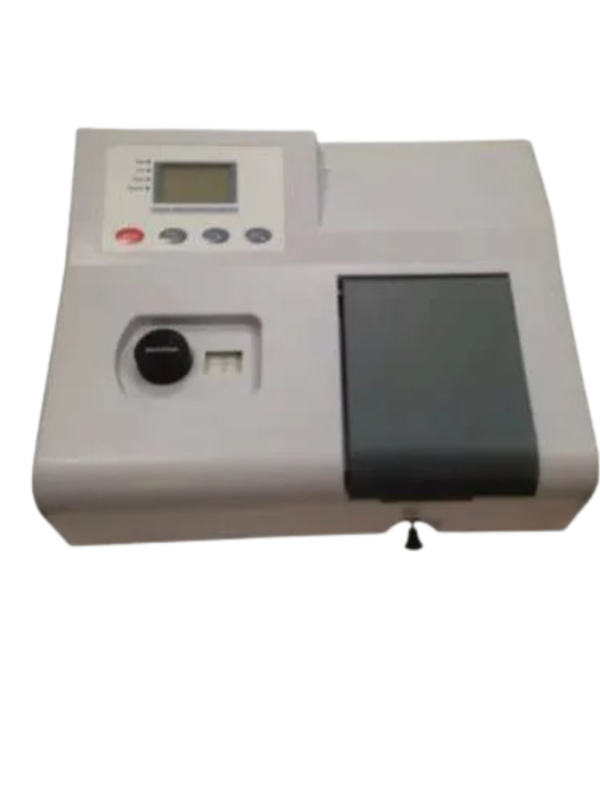

The MEDIRAY MHLI-27 Portable Double Beam UV-VIS Spectrophotometer is a highly efficient and reliable instrument designed for precision measurements across a wide range of applications. Made in India, this advanced spectrophotometer features a wavelength range of 190-1100 nm, making it ideal for laboratories in various industries.
Key Features:
- Optical System: Double Beam with 1200 lines/mm grating
- Detector: Silicon Photovoltaic
- Light Source: Deuterium & Tungsten lamps
- Photometric Mode: Absorbance (A), Transmittance (T), and Concentration (C)
- Photometric Accuracy: ±0.3%T (0-100%T)
- Bandwidth: 1 nm
- Noise & Stability: Low noise (0.0003 A/H) and excellent stability (0.0004 A/H at 500 nm)
- Wavelength Accuracy: ±0.1 nm (656.1 nm D2), ±0.3 nm (full range)
- Scanning Speed: Fast, Medium
- Data Output: USB Port and parallel port (Printer interface)
Specifications:
- Weight: 25 kg
- Dimensions: 590 x 460 x 220 mm
- Drift: ≤ ±0.0004 Abs/h
- Stray Light: ≤ 0.02%T (220 nm NaI, 340 nm NaNO2)
- Power Supply: AC 220V/50Hz or AC 110V/60Hz
- Cell Holder: 2-cell holder for convenient sample placement
- Control: Auto wavelength setting with membrane keypad
Applications:
This spectrophotometer is extensively used in:
- Medicine and pharmaceutical industries
- Environmental monitoring and analysis
- Food and beverage testing
- Water and wastewater labs
- Agricultural chemistry
- Petrochemical industries
- Educational institutions for teaching and research
- Metallurgy and geology
- Machine manufacturing and quality control
Why Choose the MEDIRAY MHLI-27?
- Reliable performance with superior wavelength accuracy and stability
- Cost-effective solution for modern laboratory needs
- Compact and portable design for ease of use
- Suitable for diverse industrial and academic applications
Reviews
There are no reviews yet.
